Well previously I blogged about actually parsing DnsCat traffic, this blog post will be about converting it into an actual Wireshark post-dissector. As with dissecting DnsCat traffic using LUA I’ve also never written a wireshark post-dissector up until now. This is how it will finally look like:


Things you should know(read: things that could/should be improved) about this post-dissector:

  • It assumes you are tunneling plain ascii (dnscat –listen –exec ‘/bin/sh’)
  • It will only decode incoming&outgoing packets if you use the wireshark development version
  • I think it would be more efficient if this would have been a chained-dissector
  • It’s only been tested locally (dnscat –dns 127.0.0.1)
  • It will happily parse every DNS packet it encounters

Just as the previous post, this one will contain the source code (pastebin) and the references at the end of the post. Now let’s get going with building our post-dissector.

There isn’t really much to tell about fitting my previous code into a wireshark post-dissector. The wireshark documentation pages are easy to follow.  The two main pages I’ve used while developing the post-dissector are:

http://wiki.wireshark.org/Lua/Dissectors
http://www.wireshark.org/docs/wsug_html_chunked/wsluarm.html

The above two pages include more or less all you need to know about wireshark and LUA to be able to develop your own post-dissector. Another helpful resource is the #wireshark channel on freenode. Really helpful people over there, the channel isn’t very active but it sure is helpful. During the development of the post-dissector I had a problem dissecting response packets, since the data I needed wasn’t made available by the DNS dissector. So I tried a few dirty hacks with LUA but failed miserably. I then decided to seek help in the #wireshark channel. The response was really great a patch was made to fix the issue I stumbled upon, which in turn made it possibly for my dissector to also parse the dns response packets. The patch made the following available:

dns.resp.primaryname

Of course this means that to run this post-dissector you need to use the wireshark development version right from their SVN server. You can skip this step and just configure wireshark to use LUA if you don’t care about the dns response packets getting parsed.

Getting & Compiling Wireshark

Assuming you already have subversion installed you can perform the following command to obtain the wireshark sources:

svn checkout http://anonsvn.wireshark.org/wireshark/trunk wireshark

Ones it’s finished you need to obtain some prerequisites before you can compile Wireshark. The following blog has a good how to about it:

http://bredsaal.dk/compiling-wireshark-from-source-on-ubuntu-9-10

Short version (quote from the blog):

First of, you have to install some libraries and tools for building wireshark:
sudo aptitude install autoconf libgtk2.0-dev libglib2.0-dev libgeoip-dev libpcre3-dev libpcap0.8-dev libtool byacc flex subversion

Now, it’s just a matter of compiling the source code:

cd wireshark
./autogen.sh
./configure
make

Like the above blog says be prepared to wait a loonnggggg time. Ones it’s done you can continue with the next step, enabling LUA.

Enabling LUA

You need to edit ‘/etc/wireshark/init.lua‘ and comment out the following line( use — for comments):

disable_lua = true; do return end;

Using the post-dissector

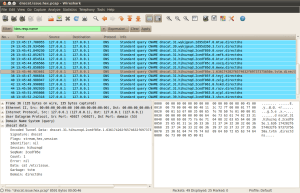

So ones all of the above have completed you can just fire up Wireshark with the appropriate commandline arguments and watch the magic happen:

./wireshark <pcapfile.pcap> -X lua_script:<our-post-dissector.lua>

Remember the post-dissector doesn’t detect if the traffic actually is DnsCat traffic, so if you feed it something else it will happily try and decode it and probably get fubar.

Code


-- postdissector to make dnscat traffic more human readable
-- DiabloHorn https://diablohorn.wordpress.com
-- Thanks to #wireshark on freenode for the quick and excellent response,
-- which resulted into the patch for the dns dissector that made access to dns.resp.primaryname possible
-- http://www.skullsecurity.org/wiki/index.php/Dnscat#Structure

-- required libs
local bit = require("bit")

-- info
print("dnscat postdissector loaded")

-- we need these fields from the dns packets
dc_dns_name = Field.new("dns.qry.name")
--this will only work if you have the developer version which includes a patch
dc_dns_rname = Field.new("dns.resp.primaryname")
dc_udp_dport = Field.new("udp.dstport")
dc_udp_sport = Field.new("udp.srcport")

-- declare our postdissector
dc_pd = Proto("dnscat","dnscat postdissector")

-- our fields
dc_tunneldata = ProtoField.string("dc_pd.tunneldata","Encoded Tunnel Data")
dc_td_sig = ProtoField.string("dc_pd.td_sig","Signature")
dc_td_flags = ProtoField.string("dc_pd.td_flags","Flags")
dc_td_ident = ProtoField.string("dc_pd.td_ident","Identifier")
dc_td_sess = ProtoField.string("dc_pd.td_session","Session")
dc_td_seqnum = ProtoField.string("dc_pd.td_seqnum","SeqNum")
dc_td_count = ProtoField.string("dc_pd.td_count","Count")
dc_td_err = ProtoField.string("dc_pd.td_error","Error")
dc_td_data = ProtoField.string("dc_pd.td_data","Data")
dc_td_gar = ProtoField.string("dc_pd.td_garbage","Garbage")
dc_td_dom = ProtoField.string("dc_pd.td_domain","Domain")
-- add our fields
dc_pd.fields = {dc_tunneldata,dc_td_sig,dc_td_flags,dc_td_ident,dc_td_sess,dc_td_seqnum,dc_td_count,dc_td_err,dc_td_data,dc_td_gar,dc_td_dom}

-- dissect each packet
function dc_pd.dissector(buffer,pinfo,tree)
 local udpsport = dc_udp_sport()
 local udpdport = dc_udp_dport()
 local dnsqryname = dc_dns_name()
 --this will only work if you have the developer version which includes a patch
 local dnsresname = dc_dns_rname()
 local subtree
 local parsed = {}

 subtree = tree:add(dc_pd,"dnscat data")
 if tostring(udpdport) == "53" then
 subtree:add(dc_tunneldata,tostring(dnsqryname))
 parsed = parseDC(tostring(dnsqryname))
 end

 --this will only work if you have the developer version which includes a patch
 if tostring(udpsport) == "53" then
 subtree:add(dc_tunneldata,tostring(dnsresname))
 parsed = parseDC(tostring(dnsresname))
 end

 subtree:add(dc_td_sig,tostring(parsed.signature))
 subtree:add(dc_td_flags,tostring(parsed.flags))
 subtree:add(dc_td_ident,tostring(parsed.identifier))
 subtree:add(dc_td_sess,tostring(parsed.session))
 subtree:add(dc_td_seqnum,tostring(parsed.seqnum))
 subtree:add(dc_td_count,tostring(parsed.count))
 subtree:add(dc_td_err,tostring(parsed.err))
 subtree:add(dc_td_data,tostring(parsed.asciidata))
 subtree:add(dc_td_gar,tostring(parsed.garbage))
 subtree:add(dc_td_dom,tostring(parsed.domain))
end -- end dissector function

-- main dissecting logic

-- split the request into an array of subdomain
function getsubs(data)
 -- empty table to hold the subs
 local subs = {}
 for sub in data:gmatch("[^%.]+") do
 table.insert(subs,sub)
 end
 return subs
end

-- decode the flags to human readable strings
function decodeflags(data)
 -- protocol flags
 local FLAG_STREAM = 0x00000001
-- deprecated
 local FLAG_SYN = 0x00000002
 local FLAG_ACK = 0x00000004
-- end of deprecated
 local FLAG_RST = 0x00000008
 local FLAG_HEX = 0x00000010
 local FLAG_SESSION = 0x00000020
 local FLAG_IDENTIFIER = 0x00000040

 -- convert string to number
 local hFlags = tonumber(data,16)
 --setup the flags table
 local Flags = {} -- st=nil,sy=nil,ac=nil,rs=nil,he=nil,se=nil,id=nil
 -- let's see which are set
 if bit.band(hFlags,FLAG_STREAM) ~= 0 then
 table.insert(Flags,"stream")
 end
-- deprecated
 if bit.band(hFlags,FLAG_SYN) ~= 0 then
 table.insert(Flags,"syn")
 end
 if bit.band(hFlags,FLAG_ACK) ~= 0 then
 table.insert(Flags,"ack")
 end
-- end of deprecated
 if bit.band(hFlags,FLAG_RST) ~= 0 then
 table.insert(Flags,"rst")
 end
 if bit.band(hFlags,FLAG_HEX) ~= 0 then
 table.insert(Flags,"hex")
 end
 if bit.band(hFlags,FLAG_SESSION) ~= 0 then
 table.insert(Flags,"session")
 end
 if bit.band(hFlags,FLAG_IDENTIFIER) ~= 0 then
 table.insert(Flags,"identifier")
 end
 return Flags
end

-- decode the error code to something human readable
-- overcomplicated...but hey I wanted to use the bitopt lib again
function decoderr(data)
 local ERR_SUCCESS = 0x00000000
 local ERR_BUSY = 0x00000001
 local ERR_INVSTATE = 0x00000002
 local ERR_FIN = 0x00000003
 local ERR_BADSEQ = 0x00000004
 local ERR_NOTIMPLEMENTED = 0x00000005
 local ERR_TEST = 0xFFFFFFFF
 local err = {}
 local herr = tonumber(data,16)

 if bit.tobit(ERR_SUCCESS) == bit.tobit(herr) then
 table.insert(err,"success")
 end

 if bit.tobit(ERR_BUSY) == bit.tobit(herr) then
 table.insert(err,"busy")
 end

 if bit.tobit(ERR_INVSTATE) == bit.tobit(herr) then
 table.insert(err,"invalidstate")
 end

 if bit.tobit(ERR_FIN) == bit.tobit(herr) then
 table.insert(err,"confin")
 end

 if bit.tobit(ERR_BADSEQ) == bit.tobit(herr) then
 table.insert(err,"badseqnum")
 end

 if bit.tobit(ERR_NOTIMPLEMENTED) == bit.tobit(herr) then
 table.insert(err,"notimplemented")
 end

 if bit.tobit(ERR_TEST) == bit.tobit(herr) then
 table.insert(err,"contest")
 end
 return err
end

-- decode netbios data to ascii
function decodenetbios(data)
 local ldata = data:upper()
 local dec = ""
 for sub in ldata:gmatch("%u%u") do
 -- perform operation in decimal and convert final value from hex XX to decimal
 --local decnum = tonumber(((sub:byte(1)-65) .. (sub:byte(2)-65)),16)
 -- Thanks to Animal for making me realize the concat has to be with hexnumbers
 local decnum = tonumber((bit.tohex(sub:byte(1)-65,1) .. bit.tohex(sub:byte(2)-65,1)),16)
 --print(decnum,sub)
 if decnum > 31 and decnum < 127 then
 dec = dec .. string.char(decnum)
 else
 dec = dec .. "."
 end
 decnum = 0
 sub = ""
 end
 return dec
end

-- decode hex data to ascii
function decodehex(data)
 local dec = ""
 for sub in data:gmatch("%x%x") do
 local decnum = tonumber(sub,16)
 if decnum > 31 and decnum < 127 then
 dec = dec .. string.char(decnum)
 else
 dec = dec .. "."
 end
 end
 return dec
end

-- main flow implementation
-- lacks implementation of syn/ack since it's deprecated
function parseDC(data)
 local finalparsed = {}
 local x = getsubs(data)

 finalparsed["signature"] = x[1]
 table.remove(x,1)
 finalparsed["flags"] = table.concat(decodeflags(x[1]),",")
 table.remove(x,1)

 if finalparsed["flags"]:find("identifier") ~= nil then
 finalparsed["identifier"] = x[1]
 table.remove(x,1)
 if finalparsed["flags"]:find("session") ~= nil then
 finalparsed["session"] = x[1]
 table.remove(x,1)
 end
 elseif finalparsed["flags"]:find("session") ~= nil then
 finalparsed["session"] = x[1]
 table.remove(x,1)
 end

 if finalparsed["flags"]:find("stream") ~= nil then
 finalparsed["seqnum"] = x[1]
 table.remove(x,1)
 end

 if finalparsed["flags"]:find("rst") ~= nil then
 finalparsed["err"] = table.concat(decoderr(x[1]),",")
 table.remove(x,1)
 finalparsed["garbage"] = x[1]
 finalparsed["domain"] = x[2]
 else
 finalparsed["count"] = x[1]
 table.remove(x,1)
 -- if you wonder the character # == len()
 finalparsed["garbage"] = x[#x-1]
 finalparsed["domain"] = x[#x]
 table.remove(x,(#x))
 table.remove(x,(#x))
 -- so we either got data or we don't
 finalparsed["asciidata"] = ""
 while #x > 0 do
 if finalparsed["flags"]:find("hex") == nil then
 finalparsed["asciidata"] = finalparsed["asciidata"] .. decodenetbios(x[1])
 else
 finalparsed["asciidata"] = finalparsed["asciidata"] .. decodehex(x[1])
 end
 table.remove(x,1)
 end
 end -- end of rst check

 return finalparsed
end -- end of parseDC function

-- end of main dissecting logic

-- register ourselfs
register_postdissector(dc_pd)

References

http://wiki.wireshark.org/Lua/Dissectors
http://www.wireshark.org/docs/wsug_html_chunked/wsluarm.html
http://wiki.wireshark.org/Lua
http://wiki.wireshark.org/Lua/Examples
http://www.skullsecurity.org/wiki/index.php/Dnscat
http://www.wowpedia.org/Pattern_matching
http://bitop.luajit.org/api.html
http://bredsaal.dk/compiling-wireshark-from-source-on-ubuntu-9-10

« Reply #5 on: November 29, 2010, 02:42:42 am »
Reply with quoteQuote Modify messageModify Remove messageRemove Split TopicSplit Topic

So it works here is the final post-dissector.

First make sure you compile wireshark, if you are on ubuntu follow the steps described over here:

http://bredsaal.dk/compiling-wireshark-from-source-on-ubuntu-9-10

in short:

Quote
First of, you have to install some libraries and tools for building wireshark:
sudo aptitude install autoconf libgtk2.0-dev libglib2.0-dev libgeoip-dev libpcre3-dev libpcap0.8-dev libtool byacc flex subversion

Now, it’s just a matter of compiling the source code:

cd wireshark
./autogen.sh
./configure
make

After you’ve done that you can use the following post-dissector to view dnscat data outgoing and incomming.
NOTE: In case you hadn’t noticed this dissector doesn’t detect dnscat traffic, so it will happily try to dissect normal dns traffic and prolly go fubar in the process of doing so.

Code:
-- postdissector to make dnscat traffic more human readable
-- http://www.skullsecurity.org/wiki/index.php/Dnscat#Structure
-- DiabloHorn https://diablohorn.wordpress.com
-- due to wireshark weirdness...or me not getting it, this only decodes requests

-- required libs
local bit = require("bit")

-- info
print("dnscat postdissector loaded")

-- we need these fields from the dns packets
dc_dns_name = Field.new("dns.qry.name")
--this will only work if you have the developer version which includes a patch
dc_dns_rname = Field.new("dns.resp.primaryname")
dc_udp_dport = Field.new("udp.dstport")
dc_udp_sport = Field.new("udp.srcport")

-- declare our postdissector
dc_pd = Proto("dnscat","dnscat postdissector")

-- our fields
dc_tunneldata = ProtoField.string("dc_pd.tunneldata","Encoded Tunnel Data")
dc_td_sig = ProtoField.string("dc_pd.td_sig","Signature")
dc_td_flags = ProtoField.string("dc_pd.td_flags","Flags")
dc_td_ident = ProtoField.string("dc_pd.td_ident","Identifier")
dc_td_sess = ProtoField.string("dc_pd.td_session","Session")
dc_td_seqnum = ProtoField.string("dc_pd.td_seqnum","SeqNum")
dc_td_count = ProtoField.string("dc_pd.td_count","Count")
dc_td_err = ProtoField.string("dc_pd.td_error","Error")
dc_td_data = ProtoField.string("dc_pd.td_data","Data")
dc_td_gar = ProtoField.string("dc_pd.td_garbage","Garbage")
dc_td_dom = ProtoField.string("dc_pd.td_domain","Domain")
-- add our fields
dc_pd.fields = {dc_tunneldata,dc_td_sig,dc_td_flags,dc_td_ident,dc_td_sess,dc_td_seqnum,dc_td_count,dc_td_err,dc_td_data,dc_td_gar,dc_td_dom}

-- dissect each packet
function dc_pd.dissector(buffer,pinfo,tree)
    local udpsport = dc_udp_sport()
    local udpdport = dc_udp_dport()
    local dnsqryname = dc_dns_name()
    --this will only work if you have the developer version which includes a patch
    local dnsresname = dc_dns_rname()
    local subtree
    local parsed = {}

    subtree = tree:add(dc_pd,"dnscat data")
    if tostring(udpdport) == "53" then
        subtree:add(dc_tunneldata,tostring(dnsqryname))
        parsed = parseDC(tostring(dnsqryname))
    end

    --this will only work if you have the developer version which includes a patch
    if tostring(udpsport) == "53" then
        subtree:add(dc_tunneldata,tostring(dnsresname))
        parsed = parseDC(tostring(dnsresname))
    end

    subtree:add(dc_td_sig,tostring(parsed.signature))
    subtree:add(dc_td_flags,tostring(parsed.flags))
    subtree:add(dc_td_ident,tostring(parsed.identifier))
    subtree:add(dc_td_sess,tostring(parsed.session))
    subtree:add(dc_td_seqnum,tostring(parsed.seqnum))
    subtree:add(dc_td_count,tostring(parsed.count))
    subtree:add(dc_td_err,tostring(parsed.err))
    subtree:add(dc_td_data,tostring(parsed.asciidata))
    subtree:add(dc_td_gar,tostring(parsed.garbage))
    subtree:add(dc_td_dom,tostring(parsed.domain))
end -- end dissector function

-- main dissecting logic

-- split the request into an array of subdomain
function getsubs(data)
    -- empty table to hold the subs
    local subs = {}
    for sub in data:gmatch("[^%.]+") do
        table.insert(subs,sub)
    end
    return subs
end

-- decode the flags to human readable strings
function decodeflags(data)
    -- protocol flags
    local FLAG_STREAM = 0x00000001
-- deprecated
    local FLAG_SYN = 0x00000002
    local FLAG_ACK = 0x00000004
-- end of deprecated
    local FLAG_RST = 0x00000008
    local FLAG_HEX = 0x00000010
    local FLAG_SESSION = 0x00000020
    local FLAG_IDENTIFIER = 0x00000040

    -- convert string to number
    local hFlags = tonumber(data,16)
    --setup the flags table
    local Flags = {} -- st=nil,sy=nil,ac=nil,rs=nil,he=nil,se=nil,id=nil
    -- let's see which are set
    if bit.band(hFlags,FLAG_STREAM) ~= 0 then
        table.insert(Flags,"stream")
    end
-- deprecated
    if bit.band(hFlags,FLAG_SYN) ~= 0 then
        table.insert(Flags,"syn")
    end
    if bit.band(hFlags,FLAG_ACK) ~= 0 then
        table.insert(Flags,"ack")
    end
-- end of deprecated
    if bit.band(hFlags,FLAG_RST) ~= 0 then
        table.insert(Flags,"rst")
    end
    if bit.band(hFlags,FLAG_HEX) ~= 0 then
        table.insert(Flags,"hex")
    end
    if bit.band(hFlags,FLAG_SESSION) ~= 0 then
        table.insert(Flags,"session")
    end
    if bit.band(hFlags,FLAG_IDENTIFIER) ~= 0 then
        table.insert(Flags,"identifier")
    end
    return Flags
end

-- decode the error code to something human readable
-- overcomplicated...but hey I wanted to use the bitopt lib again
function decoderr(data)
    local ERR_SUCCESS = 0x00000000
    local ERR_BUSY = 0x00000001
    local ERR_INVSTATE = 0x00000002
    local ERR_FIN = 0x00000003
    local ERR_BADSEQ = 0x00000004
    local ERR_NOTIMPLEMENTED = 0x00000005
    local ERR_TEST = 0xFFFFFFFF
    local err = {}
    local herr = tonumber(data,16)

    if bit.tobit(ERR_SUCCESS) == bit.tobit(herr) then
        table.insert(err,"success")
    end

    if bit.tobit(ERR_BUSY) == bit.tobit(herr) then
        table.insert(err,"busy")
    end

    if bit.tobit(ERR_INVSTATE) == bit.tobit(herr) then
        table.insert(err,"invalidstate")
    end

    if bit.tobit(ERR_FIN) == bit.tobit(herr) then
        table.insert(err,"confin")
    end

    if bit.tobit(ERR_BADSEQ) == bit.tobit(herr) then
        table.insert(err,"badseqnum")
    end

    if bit.tobit(ERR_NOTIMPLEMENTED) == bit.tobit(herr) then
        table.insert(err,"notimplemented")
    end

    if bit.tobit(ERR_TEST) == bit.tobit(herr) then
        table.insert(err,"contest")
    end
    return err
end

-- decode netbios data to ascii
function decodenetbios(data)
    local ldata = data:upper()
    local dec = ""
    for sub in ldata:gmatch("%u%u") do
        -- perform operation in decimal and convert final value from hex XX to decimal
        --local decnum = tonumber(((sub:byte(1)-65) .. (sub:byte(2)-65)),16)
        -- Thanks to Animal for making me realize the concat has to be with hexnumbers
        local decnum = tonumber((bit.tohex(sub:byte(1)-65,1) .. bit.tohex(sub:byte(2)-65,1)),16)
        --print(decnum,sub)
        if decnum > 31 and decnum < 127 then
            dec = dec .. string.char(decnum)
        else
            dec = dec .. "."
        end
        decnum = 0
        sub = ""
    end
    return dec
end

-- decode hex data to ascii
function decodehex(data)
    local dec = ""
    for sub in data:gmatch("%x%x") do
        local decnum = tonumber(sub,16)
        if decnum > 31 and decnum < 127 then
            dec = dec .. string.char(decnum)
        else
            dec = dec .. "."
        end
    end
    return dec
end

-- main flow implementation
-- lacks implementation of syn/ack since it's deprecated
function parseDC(data)
    local finalparsed = {}
    local x = getsubs(data)

    finalparsed["signature"] = x[1]
    table.remove(x,1)
    finalparsed["flags"] = table.concat(decodeflags(x[1]),",")
    table.remove(x,1)

    if finalparsed["flags"]:find("identifier") ~= nil then
        finalparsed["identifier"] = x[1]
        table.remove(x,1)
        if finalparsed["flags"]:find("session") ~= nil then
            finalparsed["session"] = x[1]
            table.remove(x,1)
        end
    elseif finalparsed["flags"]:find("session") ~= nil then
        finalparsed["session"] = x[1]
        table.remove(x,1)
    end

    if finalparsed["flags"]:find("stream") ~= nil then
        finalparsed["seqnum"] = x[1]
        table.remove(x,1)
    end

    if finalparsed["flags"]:find("rst") ~= nil then
        finalparsed["err"] = table.concat(decoderr(x[1]),",")
        table.remove(x,1)
        finalparsed["garbage"] = x[1]
        finalparsed["domain"] = x[2]
    else
        finalparsed["count"] = x[1]
        table.remove(x,1)
        -- if you wonder the character # == len()
        finalparsed["garbage"] = x[#x-1]
        finalparsed["domain"] = x[#x]
        table.remove(x,(#x))
        table.remove(x,(#x))
        -- so we either got data or we don't
        finalparsed["asciidata"] = ""
        while #x > 0 do
            if finalparsed["flags"]:find("hex") == nil then
                finalparsed["asciidata"] = finalparsed["asciidata"] .. decodenetbios(x[1])
            else
                finalparsed["asciidata"] = finalparsed["asciidata"] .. decodehex(x[1])
            end
            table.remove(x,1)
        end
    end -- end of rst check

    return finalparsed
end -- end of parseDC function

-- end of main dissecting logic

-- register ourselfs
register_postdissector(dc_pd)

Advertisements
Comments
  1. diablohorn says:

    Cool that looks really nice. At least python is easier to handle datatypes :p

  2. […] I found Diablo Horn’s very impressive LUA script that can be used for this task. However, I’ve been wanting to learn Python and I thought […]

  3. […] This post was mentioned on Twitter by Stéphane Bortzmeyer, jean marc. jean marc said: DnsCat traffic post-dissector http://bit.ly/dOaRuy #security #wireshark #DNS […]

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s
