Secure slack bot; An exercise in threat modeling

secure, that’s one of those words that is capable of triggering a (usually negative) physical reaction with most people working in the security industry. Thing is, whenever someone claims secure, they usually forget to mention against what kind of threat(s) it is secure. So every once in a while I like to attempt to build something that is secure against a chosen threat model, just for the fun of the mental workout.

This blog will be about the exercise of performing a threat model of a slack bot I might build. It will not contain instructions on how to implement it, it will just be my train of thought while doing a threat model for the solution I want to build.

Most of the times it ends in the project not being finished or if I finish it people point out all kind of security issues in the solution. The latter being the main reason that I like doing these type of projects, since I’ve come to realize that somehow when you are designing a secure solution on your own, you will always end up with blind spots. While if you where to look at the same solution without building it you’d be spotting those exact same security issues. Thus you learn a lot from attempting to build a secure solution and have some else shoot some nice holes in it.

This time I decided to build a simple slack bot that would be capable of receiving a URL to an online Youtube video and download it for offline consumption. After some thinking I came to the following definition of the slack bot being secure:

    • Hard target to casual and opportunistic attackers
    • Hard target for memory corruption vulnerabilities
    • When breached, constraint the attacker to pre-defined resources

So basically I want the solution to be secure against a curious user that uses the bot and decides he wants to hack it for the lulz. In addition when the attacker succeeds, I want that the attacker is only able to view / modify the information that I consider expendable. You’ll notice that I’m saying ‘when the attacker succeeds’ and not ‘if the attacker succeeds’. This is due to the fact that I always assume it will be breached, thus forcing myself to answer the question(s): “what’s the impact? can I accept it? if not, what should I mitigate?”. The other reason is of course that I’m a terrible sysadmin, and I expect myself to forget to patch stuff :( Besides the security requirements I also wanted to learn something new, so I decided I wanted to develop the bot using go.

So how do you proceed to design something with the above requirements? Normally I just perform a threat model-ish approach whereby I mentally think of the assets, attacks and the corresponding security controls to mitigate those attacks, sometimes with the aid of a whiteboard. This time however I decided to give the more formal drawing of a threat model a go. So i searched around, found this awesome blog and after a short while of (ab)using draw.io I ended up with the following result:

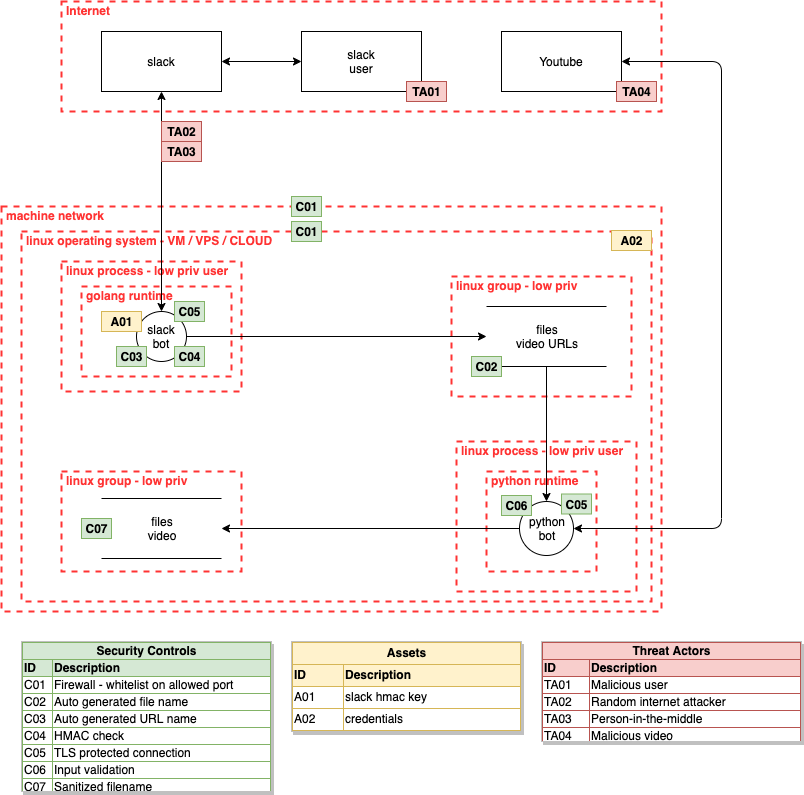

Initial threat model
Initial threat model

Let’s dive into this diagram and see how to further improve the security controls or security boundaries.

TL;DR Threat modeling is a fun and useful mental exercise and aids in spotting potential attacks you might forget to secure against. Also it is 2019, we should be using seccomp and apparmor or similar technologies much more frequent.

Continue reading “Secure slack bot; An exercise in threat modeling”

Introduction to analysing full disk encryption solutions

I’ve written a couple of times on the subject of boot loaders and full disk encryption, but I haven’t really explored it in more detail. With this blog post I hope to dive a bit deeper into how to actually start performing these type of analysis and why they are useful to perform. I’ll start with the usefulness first and then go into the part on how to do it, but will not be fully reversing a disk encryption boot loader. I won’t be doing a lot of hard-core reversing like finding vulnerabilities within the cryptographic operations or reversing custom filesystem implementations, but hopefully provide enough information to get started in the area of reversing unknown boot loaders.

The type of products with which you can use the approaches and techniques described in this blog post are the most useful when applied to full disk encryption (FDE) solutions that are configured to not require pre-boot authentication. The reason being, that you then could potentially obtain the disk decryption key. If the solution requires pre-boot authentication, the information that you can obtain, might be reduced to meta-data or ‘deleted’ files. Which brings us to the whole, why are these type of analysis useful?

The reason of why this is useful, I didn’t fully realise until a couple of years ago when a colleague introduced me to the wonders of all the (hidden) information that FDE solutions may contain. Let’s look at the type of information that you may encounter while investigating these solutions:

  • (encrypted) Hidden file systems
  • (obfuscated) Encryption keys
  • Usernames
  • (hashed/encrypted) Passwords
  • Windows domain credentials
  • Configuration information of the FDE solution
  • Files marked for deletion
  • Finding 0days and bypassing encryption

Based on the above list of items we can pretty much conclude that analysing FDE solutions is useful from an offensive as well as from a defensive point of view. It can either help us to breach a target network or obtain sensitive information as well as collect forensic evidence or aid us into understanding the specific cryptographic implementation to enable us to decrypt the disk and analyse it. The helper tools I’ve used in this blog post can be found here. Keep on reading if you want to know the rest of all the details and the process I usually follow. I’ll try to describe the following steps:

  • Creating a (partial) copy of the disk
  • Analysing the disk
  • Static & dynamic boot analysis

Since I don’t have easy access to disk encryption software with the exact features I’d like to analyse I’ll be using DiskCryptor as an example product.

For some reason it seems that the products with the most interesting features to reverse engineer have a horrendous ‘request trial’ process as well as not providing trials to a random researcher on the internet :( sad panda :(

The other reason to use DiskCryptor is the fact that it is open source, thus enabling people that want to get started with type of stuff to more easily understand difficult snippets of assembly. My personal approach to a lot of reversing challenges usually revolves around finding a similar open source variant first or finding the open source components used in the proprietary solution if applicable. Reason being that it makes your life a lot easier to understand not only general concepts, but also specific code quirks. A very nice explanation on finding as much information as possible before your start reversing is given by Alex Ionescu in his offensive con keynote ‘Reversing without reversing’.

Oh and there is no specific goal, besides just explaining my general thought process. As a side note I am no reverse engineering expert, so feel free to correct me :-)

Continue reading “Introduction to analysing full disk encryption solutions”

Identify a whitelisted IP address

An IP whitelist is one of the many measures applied to protect services, hosts and networks from attackers. It only allows those that are on the IP whitelist to access the protected resources and all others are denied by default. As attackers we have multiple obstacles to overcome if we want to bypass this and not always will it be possible. In my personal opinion there are two situation in which you will end up as an attacker:

  1. You are NOT on the same network as your target
  2. You are on the same network as your target

In the first situation you will (generally speaking) not be able to access or influence the network traffic of your target. This in turn enables the TCP/IP mechanisms to be useful and prevent you from accessing the resources, although maybe not prevent you from discovering who is on the whitelist.

In the second situation you will (generally speaking) be able to access or influence the network traffic of your target. This enables us as attacker to identify as well as bypass IP restrictions, by manipulating the TCP/IP protection mechanisms, to gain access to the protected resources.

For both situations there is an often overlooked detail which is: how do you know which IPs are on the whitelist? Mostly it is just assumed that either you know that upfront or discover that due to a connection being active while you initiate your attack. In this blog posts we’ll discuss the two situations and describe the techniques available to identify IPs on whitelist which have no active connection. A small helper script can be found here.

Continue reading “Identify a whitelisted IP address”

Brute forcing encrypted web login forms

There are a ton of ways to brute force login forms, you just need to google for it and the first couple of hits will usually do it. That is of course unless you have Burp in which case it will be sufficient for most of the forms out there. Sometimes however it will not be so straight forward and you’ll need to write your own tool(s) for it. This can be for a variety of reasons, but usually it boils down to either a custom protocol over HTTP(S) or some custom encryption of the data entered. In this post we are going to look at two ways of writing these tools:

  • Your own python script
  • A Greasemonkey script

Since to write both tools you first need to understand and analyse the non-default login form let’s do the analysis part first. If you want to follow along you’ll need the following tools:

  • Python
  • Burp free edition
  • Firefox with the Greasemonkey plugin
  • FoxyProxy
  • FireFox developer tools (F12)

Please note that even though we are using some commercially available software as an example, this is NOT a vulnerability in the software itself. Most login forms can be brute forced, some forms slower than others ;) As usual you can also skip the blog post and directly download the python script & the Greasemonkey script. Please keep in mind that they might need to be adjusted for your own needs.

Continue reading “Brute forcing encrypted web login forms”

Quantum Insert: bypassing IP restrictions

By now everyone has probably heard of Quantum Insert NSA style, if you haven’t then I’d recommend to check out some articles at the end of this post. For those who have been around for a while the technique is not new of course and there have been multiple tools in the past that implemented this type of attack. The tools enabled you to for example fully hijack a telnet connection to insert your own commands, terminate existing connections or just generally mess around with the connection. Most of the tools relied on the fact that they could intercept traffic on the local network and then forge the TCP/IP sequence numbers (long gone are the days that you could just predict them).

So it seems this type of attack, in which knowing the sequences numbers aids in forging a spoofed packet, has been used in two very specific manners:

  • Old Skool on local networks to inject into TCP streams
  • NSA style by globally monitoring connections and injecting packets

There is a third option however that hasn’t been explored yet as far as i know, which is using this technique to bypass IP filters for bi-directional communication. You might wonder when this might come in handy right? After all most of the attackers are used to either directly exfiltrate through HTTPS or in a worst case scenario fall back to good old DNS. These methods however don’t cover some of the more isolated hosts that you sometimes encounter during an assignment.

During a couple of assignments I encountered multiple hosts which were shielded by a network firewall only allowing certain IP addresses to or from the box. The following diagram depicts the situation:

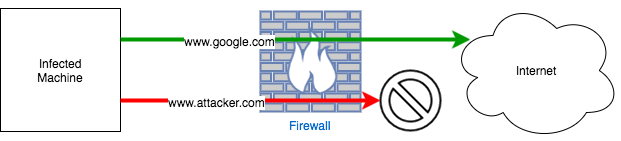

As you can see in the above diagram, for some reason the owner of the box had decided that communication with internet was needed, but only to certain IP addresses. This got me thinking on how I could exfiltrate information. The easiest way was of course to exfiltrate the information in the same way that I had obtained access to the box, which was through SSH and password reuse. I didn’t identify any other methods of exfiltration during the assignment. This was of course not the most ideal way out, since it required passing the information through multiple infected hops in the network which could attract some attention from the people in charge of defending the network.

A more elegant way in my opinion would have been to directly exfiltrate from the machine itself and avoid having a continuous connection to the machine from within the network. In this post we are going to explore the solution I found for this challenge, which is to repurpose the well known quantum insert technique to attempt and build a bi-directional communication channel with spoofed IP addresses to be able to exfiltrate from these type of isolated hosts. If you are thinking ‘this only works if IP filtering or anti address spoofing is not enforced’ then you are right. So besides the on going DDOS attacks, this is yet another reason to block outgoing spoofed packets.

If you are already familiar with IP spoofing, forging packets and quantum insert you can also skip the rest of this post and jump directly to QIBA – A quantum insert backdoor POC. Please be aware that I only tested this in a lab setup, no guarantees on real world usage :)

Lastly as you are probably used to by now, the code illustrates the concept and proofs it works, but it’s nowhere near ready for production usage.

Continue reading “Quantum Insert: bypassing IP restrictions”

Python raw sockets sniffing & pcap saving

Even though we are pretty used to it, libpcap is not always present on systems. Usually, regardless of your goal, looking at traffic is actually pretty useful. In my experience this applies to offensive (pentesting, red team) work as well as defensive (incident response, network monitoring) work.

One of the first things that comes to mind, when libpcap is not available, is of course raw sockets, since these seem to be always available as long as you have the correct privileges. I’ve written previously about them as well as created some POC for backdoor purposes. Up until now raw sockets haven’t failed me, so when during a recent assignment I had to sniff traffic without libpcap I decided to write some Python code to achieve this. In case you are wondering, yes this was to further gather juicy information from unencrypted protocols like telnet, http and ftp.

A script nowadays never starts without a quick google query to save yourself the trouble of writing everything from scratch. So even though I enjoy writing a lot of things from scratch to learn, in this case I mainly adjusted an excellent example script from: http://askldjd.com/2014/01/15/a-reasonably-fast-python-ip-sniffer/

Adjusting the above script to save the data in pcap format was an easy undertaking and immediately useful. After waiting for a couple of minutes I got myself a nice pcap file which I could analyse on another machine with regular tools like tcpdump or wireshark.

You can find the script on the following gist

[python] Poor man’s forensics

So after a period of ‘lesser technical times’ I finally  got a chance to play around with bits, bytes and other subjects of the information security world.  A while back I got involved in a forensic investigation and participated with the team to answer the investigative questions.  This was an interesting journey since a lot of things peeked my interest or ended up on one of my todo lists.

One of the reasons that my interest was peeked is that yes, you can use a lot of pre-made tools to process the disk images and after that processing is done you can start your investigation. However, there are still a lot of questions you could answer much quicker if you had a subset of that data available ‘instantly’. The other reason is that not all the tools understand all the filesystems out there, which means that if you encounter an exotic file system your options are heavily reduced. One of the tools I like and which inspired me for these quick & dirty scripts is ‘mac-robber‘ (be aware that it changes file times if the destination is not mounted read-only) since it’s able to process any file system as long as it’s mounted on an operating system on which mac-robber is able to run. An example of running mac-robber:

sudo mac-robber mnt/ | head
class|host|start_time
body|devm|1471229762
MD5|name|inode|mode_as_string|UID|GID|size|atime|mtime|ctime|crtime
0|mnt/.disk|0|dr-xr-xr-x|0|0|2048|1461191363|1461191353|1461191353|0
0|mnt/.disk/base_installable|0|-r–r–r–|0|0|0|1461191363|1461191316|1461191316|0
0|mnt/.disk/casper-uuid-generic|0|-r–r–r–|0|0|37|1461191363|1461191353|1461191353|0

You can even timeline the output if you want with mactime:

sudo mac-robber mnt/ | mactime -d | head
Date,Size,Type,Mode,UID,GID,Meta,File Name
Thu Jan 01 1970 01:00:00,2048,…b,dr-xr-xr-x,0,0,0,”mnt/.disk”
Thu Jan 01 1970 01:00:00,0,…b,-r–r–r–,0,0,0,”mnt/.disk/base_installable”
Thu Jan 01 1970 01:00:00,37,…b,-r–r–r–,0,0,0,”mnt/.disk/casper-uuid-generic”
Thu Jan 01 1970 01:00:00,15,…b,-r–r–r–,0,0,0,”mnt/.disk/cd_type”
Thu Jan 01 1970 01:00:00,60,…b,-r–r–r–,0,0,0,”mnt/.disk/info”

Now that’s pretty useful and quick! One of the things I missed however was the ability to quickly extend the tools as well as focus on just files. From a penetration testing perspective I find files much more interesting in an forensic investigation than directories and their meta-data. This is of course tied to the type of investigation you are doing, the goal of the investigation and the questions you need answered.

I decided to write a mac-robber(ish) python version to aid me in future investigations as well as learning a thing or two along the way. Before you continue reading please be aware that:

  1. The scripts have not gone through extensive testing
  2. Thus should not be blindly trusted to produce forensically sound output
  3. The regular ‘professional’ tools are not perfect either and still contain bugs ;)

That being said, let’s have a look at the type of questions you can answer with a limited set of data and how that could be done with custom written tools. If you don’t care about my ramblings, just access the Github repo here. It has become a bit of a long article, so here are the ‘chapters’ that you will encounter:

  1. What data do we want?
  2. How do we get the data?
  3. Working with the data, answering questions
    1. Converting to body file format
    2. Finding duplicate hashes
    3. Permission issues
    4. Entropy / file type issues
  4. Final thoughts

Continue reading “[python] Poor man’s forensics”
