Posts Tagged ‘dns’

So I just setup a mini enterprise environment with a domain controller (tip: win2k8r2 can be used free for 180 days)and a client. I decided to run wireshark while I added the client to the new domain, which resulted in the following screenshot:

Now that looks rather interesting when you want to locate domain controllers doesn’t it? Let’s give it a go with nslookup

C:\>nslookup -type=SRV _ldap._tcp.dc._msdcs.pen.test
Server: UnKnown
Address: 192.168.164.128

_ldap._tcp.dc._msdcs.pen.test SRV service location:
priority = 0
weight = 100
port = 389
svr hostname = win-62u3ql0g1ia.pen.test
win-62u3ql0g1ia.pen.test internet address = 192.168.164.128
win-62u3ql0g1ia.pen.test internet address = 192.168.126.133

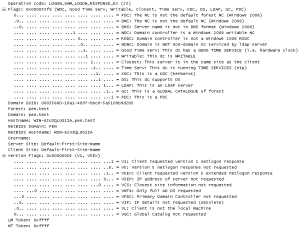

Now isn’t that neat? It’s like a quick and easy way to find the available domain controllers in a network, if you know the domain name. Additionally it seems that the client communicates with the domain controller using CLDAP. I didn’t find a  suitable Linux client, but in the links below you’ll find a perl script capable of performing the so called “LDAP Ping“, the other option is of course using a windows client. The output of the script is similar to the one shown in Wireshark which looks as follow:

Now I can’t be the only one doing this, so I googled around a bit and found some nice additional material worth the read, they are summed up below:

Well previously I blogged about actually parsing DnsCat traffic, this blog post will be about converting it into an actual Wireshark post-dissector. As with dissecting DnsCat traffic using LUA I’ve also never written a wireshark post-dissector up until now. This is how it will finally look like:


Things you should know(read: things that could/should be improved) about this post-dissector:

  • It assumes you are tunneling plain ascii (dnscat –listen –exec ‘/bin/sh’)
  • It will only decode incoming&outgoing packets if you use the wireshark development version
  • I think it would be more efficient if this would have been a chained-dissector
  • It’s only been tested locally (dnscat –dns 127.0.0.1)
  • It will happily parse every DNS packet it encounters

Just as the previous post, this one will contain the source code (pastebin) and the references at the end of the post. Now let’s get going with building our post-dissector.

(more…)

For the ones who don’t know DnsCat it’s an awsome tool and even has metasploit shellcodes. Here’s a little quote from the website:

dnscat is designed in the spirit of netcat, allowing two hosts over the Internet to talk to each other. The major difference between dnscat and netcat, however, is that dnscat routes all traffic through the local (or a chosen) DNS server. This has several major advantages:

  • Bypasses pretty much all network firewalls
  • Bypasses many local firewalls
  • Doesn’t pass through the typical gateway/proxy and therefore is stealthy

Which brings us to my original quest of finding a nice protocol to experiment with Wireshark dissector prototyping using LUA. I decided to try and make a dissector for DnsCat traffic. This post won’t contain the dissector, instead it contains a stand alone LUA DnsCat traffic parser(main dissector logic). Reason for this is that I’m not entirely happy with the dissector as it is right now,  I want to try and improve some things on it before publishing it. To be able to run this parser you’ll need to install an additional LUA library though, since LUA doesn’t have native support for bitwise operators. You can get the library from the following website:

http://bitop.luajit.org/

The installation is pretty straightforward, if you are on ubuntu you could also just do the following:

sudo apt-get install liblua5.1-bitop0

Ones you have that in place you should be able to run the parser without any problems. You can get the parser from pastebin or at the end of this post. If you are really impatient you can throw together a quick dissector yourself and just reuse this code for the dissecting part. I’ve also included some references at the end of this post that I’ve used while developing the parser.

(more…)

Well this is new for me, further developing a working POC. Like you all know, I love new ideas and POC development, but hate the further development of POCs. This time the Firewall DNS POC just didn’t cut it, it did what I wanted it to do, but it lacked some “usability” features. These are the added features:

#Functionality
# – = done
# x = todo
###
# – Queries can either be full domain(www.google.com), or only base domain(google.com)
# – Block queries
# – relays queries
# – reads settings from config
# – reloads config
#   – on/off using -auto
# – drops privileges
# – reload config on key combo (ctrl+c)
###

The config file options are somewhat explained in the config file itself, other stuff you’ll have to read from the src. Here”s how it looks now:

sudo ./fw-dns.py
##############################################
new configuration:
reload time:
43200
dns server:
(‘192.168.2.254’, 53)
if listen:
127.0.0.1
allowed full domains:
[‘ubuntu.com’]
allowed partial domains:
[”]
##############################################
Starting fw-dns
Listening on localhost 127.0.0.1
Connected to remote DNS server (‘192.168.2.254’, 53)
Dropped privileges

You can download using bittorrent here:  fw-dns_v0.1
You can download from megaupload here:  http://www.megaupload.com/?d=D4WBLBQ8

Firewall DNS

Posted: April 19, 2010 in security
Tags: , , , , ,

So I’m trying to setup a really tight server and one of the things left to secure was DNS. How do I make sure that if the server gets rooted the backdoor will not be able to connect through DNS to it’s C&C? I decided to write a custom “firewall dns”, which would only allow DNS requests if they matched a certain host. You might now be yelling things like “YOU RETARD, never code something if there is an existing and probably working alternative”, true; thing is I’ve never really done anything with DNS on a coding level so it seemed like this was my opportunity.

(more…)

Actually I called it GDNS but well…that would be to cryptic as a blog item title. This is also from the KD-Team archives. Enjoy. All it does is *TRY* and find all sub domains for a given domain with the use of google.

http://pastebin.com/f720c4036
